Scenario-1
Camera Selection
Camera Network Camera Name
HAV Kittila 1-7
Temporal Selection
Date and time intervals
Start End
Date 2023-08-01 2024-08-31
Time 05:15:00 18:45:00
Masking/ROIs
Run analyses also for each polygon (ROI) separately: True
0.0705,0.8571,0.0258,0.8666,0.0258,0.7911,0.0121,0.7951
PolygonImage Coordinates
10.0136,0.8086,0.0106,0.9892,0.9871,0.9865,0.9841,0.81,0.7205,0.7978,0.422,0.7992,0.425,0.876,0.3568,0.8814,0.3561,0.7992,0.0697,0.7951
ROI Geolocation information
Coordinate system: WGS84(EPSG:4326)
Geometry information is retrieved from camera metadata.
PointGeolocation Coordinates
167.707929,24.839915
Thresholds
Type Value Minimum Maximum
Image Threshold Brightness 0.4 1.0
Image Threshold Luminance 0.0 1.0
Image Threshold Red Fraction 0.0 1.0
Image Threshold Green Fraction 0.0 0.35
Image Threshold Blue Fraction 0.34 0.325
ROI Threshold Red Fraction 0.0 1.0
ROI Threshold Green Fraction 0.0 1.0
ROI Threshold Blue Fraction 0.0 1.0
Pixel Threshold Red Channel 0.0 254.0
Pixel Threshold Green Channel 0.0 254.0
Pixel Threshold Blue Channel 0.0 254.0
Pixel Threshold Grey Composite 0.0 254.0
Analyses
Analysis No Analysis Name Analysis Parameters
1 Snow Cover Fraction - SNOWCOV001
Parameter Value
Include Red Channel Not Selected
Include Green Channel Not Selected
Include Blue Channel Selected
Store mid-step and extra output data Not Selected
Use georectification Not Selected
Spatial extent 0;0;0;0
Spatial Extent Coordinate System WGS84(EPSG:4326)
Spatial resolution 1
DEM Dataset NLS-DEM2
Camera coordinates 0;0
Camera coordinate system WGS84(EPSG:4326)
Camera Height 10
Horizontal position 0.0
Target Direction 0.0
Vertical position 0.0
Focal length 24
Scaling factor 1
Interpolate DEM Data Selected
Flat terrain Not Selected
Radial Center 0.0;0.0
Horizontal coefficient 0.0
Vertical Coefficient 0.0
2 Snow Cover Fraction - SNOWCOV001
Parameter Value
Include Red Channel Not Selected
Include Green Channel Not Selected
Include Blue Channel Selected
Store mid-step and extra output data Not Selected
Use georectification Selected
Spatial extent -20;-75;80;-10
Spatial Extent Coordinate System ETRS-TM35FIN(EPSG:3067) GEOID with Camera at Origin
Spatial resolution 0.0075
DEM Dataset NLS-DEM2
Camera coordinates 67.707929;24.839915
Camera coordinate system WGS84(EPSG:4326)
Camera Height 2.8
Horizontal position 0.0
Target Direction 166.22
Vertical position -8
Focal length 50
Scaling factor 0.8
Interpolate DEM Data Selected
Flat terrain Not Selected
Radial Center 0.0;0.0
Horizontal coefficient 0.01
Vertical Coefficient 0.01
Results
Scenario-1
Camera Selection
Camera Network Camera Name
HAV Kittila 1-4
Temporal Selection
Date and time intervals
Start End
Date 2023-08-01 2024-08-31
Time 05:15:00 18:45:00

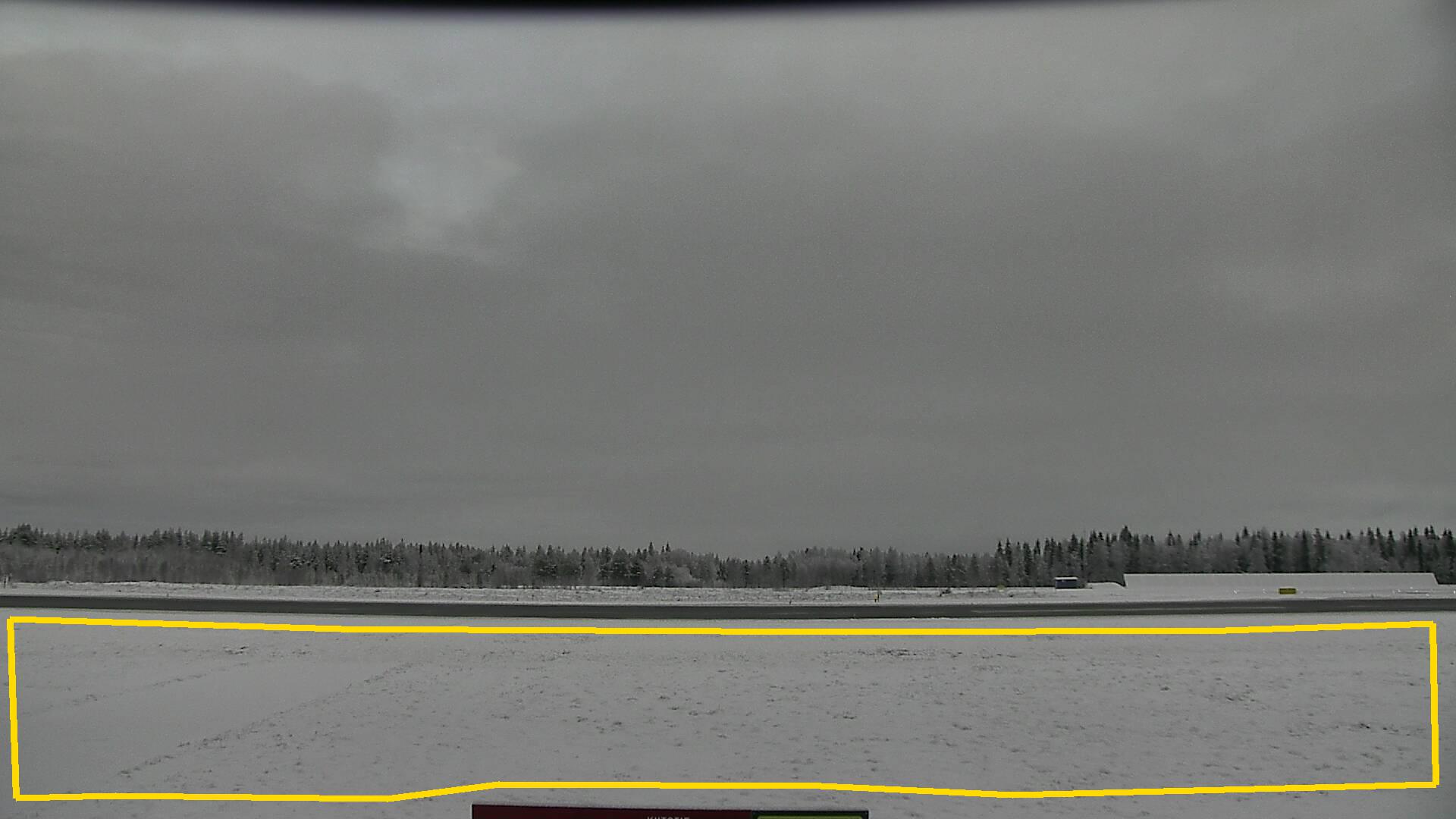

Masking/ROIs
Run analyses also for each polygon (ROI) separately: True
PolygonImage Coordinates
10.0068,0.7561,0.2341,0.7682,0.4091,0.7695,0.5811,0.7722,0.8417,0.7695,0.9841,0.7615,0.9864,0.9582,0.6955,0.9704,0.5636,0.9596,0.3432,0.9582,0.2659,0.9757,0.0795,0.9717,0.0114,0.9744
ROI Geolocation information
Coordinate system: WGS84(EPSG:4326)
Geometry information is retrieved from camera metadata.
PointGeolocation Coordinates
167.707929,24.839915
Thresholds
Type Value Minimum Maximum
Image Threshold Brightness 0.4 1.0
Image Threshold Luminance 0.0 1.0
Image Threshold Red Fraction 0.0 1.0
Image Threshold Green Fraction 0.0 0.35
Image Threshold Blue Fraction 0.34 0.325
ROI Threshold Red Fraction 0.0 1.0
ROI Threshold Green Fraction 0.0 1.0
ROI Threshold Blue Fraction 0.0 1.0
Pixel Threshold Red Channel 0.0 254.0
Pixel Threshold Green Channel 0.0 254.0
Pixel Threshold Blue Channel 0.0 254.0
Pixel Threshold Grey Composite 0.0 254.0
Analyses
Analysis No Analysis Name Analysis Parameters
1 Snow Cover Fraction - SNOWCOV001
Parameter Value
Include Red Channel Not Selected
Include Green Channel Not Selected
Include Blue Channel Selected
Store mid-step and extra output data Not Selected
Use georectification Not Selected
Spatial extent 0;0;0;0
Spatial Extent Coordinate System WGS84(EPSG:4326)
Spatial resolution 1
DEM Dataset NLS-DEM2
Camera coordinates 0;0
Camera coordinate system WGS84(EPSG:4326)
Camera Height 10
Horizontal position 0.0
Target Direction 0.0
Vertical position 0.0
Focal length 24
Scaling factor 1
Interpolate DEM Data Selected
Flat terrain Not Selected
Radial Center 0.0;0.0
Horizontal coefficient 0.0
Vertical Coefficient 0.0
2 Snow Cover Fraction - SNOWCOV001
Parameter Value
Include Red Channel Not Selected
Include Green Channel Not Selected
Include Blue Channel Selected
Store mid-step and extra output data Not Selected
Use georectification Selected
Spatial extent 5;-30;85;70
Spatial Extent Coordinate System ETRS-TM35FIN(EPSG:3067) GEOID with Camera at Origin
Spatial resolution 0.0075
DEM Dataset NLS-DEM2
Camera coordinates 67.707929;24.839915
Camera coordinate system WGS84(EPSG:4326)
Camera Height 2.8
Horizontal position 0.0
Target Direction 79
Vertical position -8
Focal length 50
Scaling factor 0.8
Interpolate DEM Data Selected
Flat terrain Selected
Radial Center 0.0;0.5
Horizontal coefficient 0.035
Vertical Coefficient 0.035
Results
